Binary 360 Series 4K HDR Economy Extender with IR

Product code: B-360-1CAT-30
Availability: instock
  • Supports 4K@60Hz 4:4:4, 4K HDR & 18Gbps
  • 4K up to 30m, 1080p up to 50m
SKU: B-360-1CAT-30 Category: Tags: , ,

Binary 360 Series 4K HDR Economy Extender with IR

This simple and cost-effective extender delivers 4K HDR HDMI content reliably and effectively in an ultra-small form factor. Transmit 4K@60Hz video over category cable while utilizing dealer-centric features like power over cable, single direction IR pass-through, and automatic HDMI equalization.

4K image on TV

Full 4K HDR Content

This Binary extender transmits 4K@60Hz video over a single category cable up to 30 meters, or 1080p up to 50 meters, saving valuable install time.

Binary 360-1CAT extender form factor

Ultra-Small Form Factor and Easy Mounting

A small form factor means you can mount this extender almost anywhere with ease, allowing you to spend more time delivering the best possible experience for your customer.

Upclose image of IR port

Bi-Directional Power over Cable (POC)

No room for a bulky power supply behind the TV or in a rack? Not a problem. With Bi-Directional Power over Cable (PoC), you can send power over the same Cat5e/6 cable that extends your video, audio, and control signals. This means you only need one power supply – and you can put it at the head end or display to get it completely out of the way. Plus the extender features screw-down power plugs, so you never have to worry about getting service calls because a plug fell out when the TV was moved. Now those are some real reasons to celebrate!

Upclose image of IR port

IR Passthrough

Easily send IR signals from the TV location back to cable boxes, DVD players, and other source equipment at the head end. The IR connections feature active circuitry that supports a wide variety of IR and control system types.

Surge Protection

Built-In ESD and Surge Protection, Thermal Reliability

Intelligent circuit design, perfected through extensive hardware testing, has resulted in a robust product with excellent ESD and surge protection that exceeds CE Level 3 standards. During development, every connection was tortured with an ESD gun and a lightning simulator. They were hit with ESD at 15KV and surges up to 1600V. More importantly, though, they each lived to tell about it!

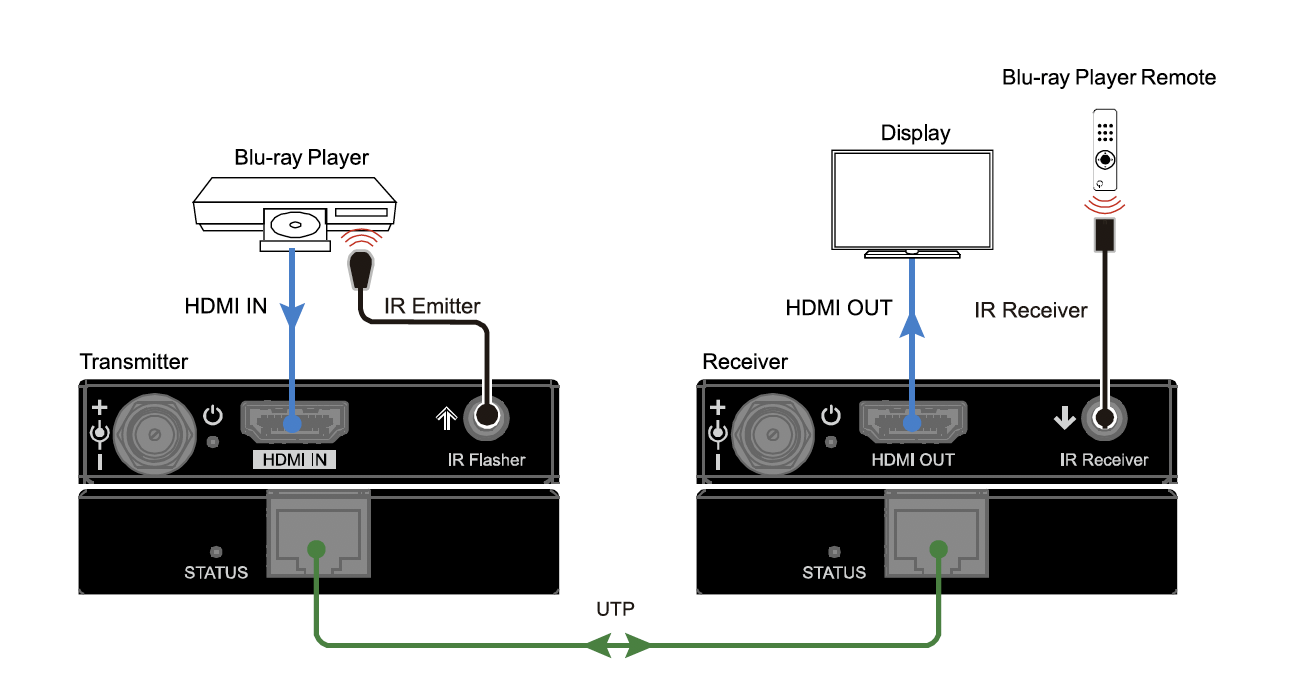

B-360-1CAT diagram

2-Year Limited Warranty

This Binary product has a 2-year limited Warranty. This warranty includes parts and labor repairs on all components found to be defective in material or workmanship under normal conditions of use. This warranty will not apply to products that have been abused, modified or disassembled. Products to be repaired under this warranty must be returned to SnapAV or a designated service center with prior notification and an assigned return authorization number (RA).

Weight .33 lbs
Dimensions 2.76 × 0.60 × 3.54 in
